ENGINEERING SOFTWARE FOR MEDIUM-VOLTAGE COIL MANUFACTURERS
From motor data to production-ready coil engineering.
WindingOS brings stator-coil calculations, cost studies and engineering drawings into one practical workflow — built from real coil shop experience.
One workflow, from quotation to production
Reduce repeated entry and disconnected checks. Carry the same motor information through the core technical stages of a winding project.
Enter motor data
Start with the technical information already available in your motor file.
Calculate and evaluate
Develop coil geometry, insulation build-up, slot-fit and cost outputs.
Generate outputs
Turn calculations into practical drawings and production information.
Review with confidence
Keep decisions traceable and reduce repeated manual engineering work.
Engineering shaped by the real manufacturing sequence
WindingOS reflects the actual work: receiving the enquiry, running calculations, developing geometry, preparing production information, checking the result and supporting shipment.
- Practical outputs for experienced winding teams
- A consistent path from data entry to engineering review
- Supported cases are validated; unsupported combinations are identified
- Engineering judgment remains visible and in the hands of the user
Engineering tools in one place
Designed around the work of medium-voltage motor and generator stator-coil teams.
Technical calculations
Consistent calculations for supported medium-voltage stator-coil configurations.
Cost studies
Build project cost information from the same inputs used by engineering.

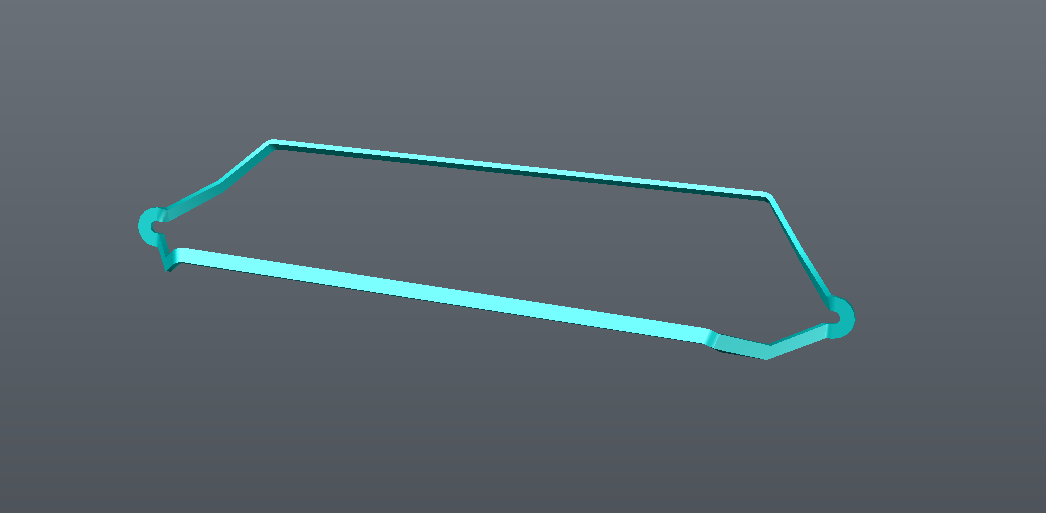

Coil geometry
Develop practical dimensions and evaluate the design against slot requirements.
Engineering drawings
Create clear outputs that support manufacturing and technical review.
Connection diagrams
Generate validated connection information for supported winding configurations.

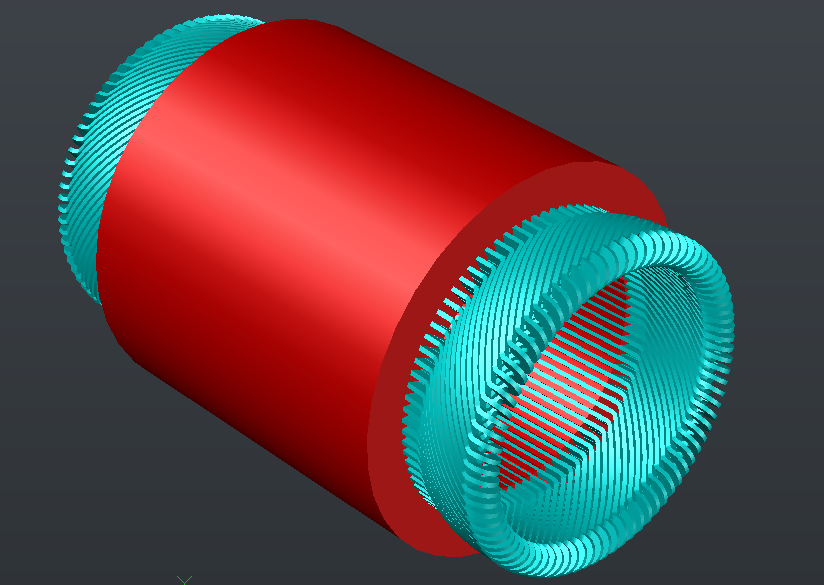

3D visualisation
Review coil and stator geometry visually as the product continues to evolve.
Software made by someone who knows the machine and the drawing.
The calculation and drawing workflow has been checked against data from nearly 500 real motors. WindingOS is not only programmer-built software; it is a coil manufacturer's engineering tool.
The product communicates results without exposing the proprietary calculation methods that power them.
See how WindingOS fits your winding workflow.
Tell us about the motors, generators and coil types you work with.
